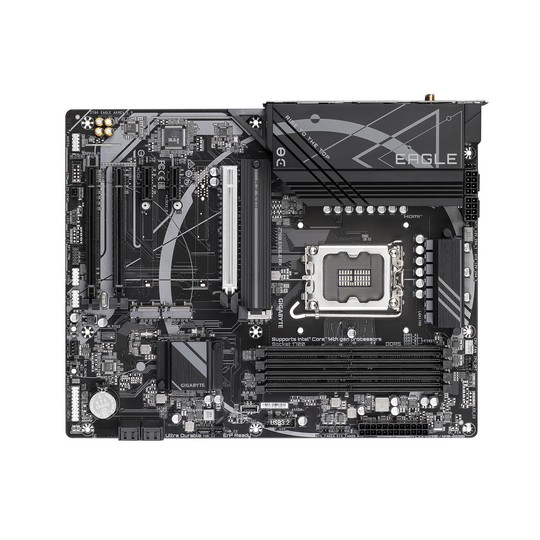

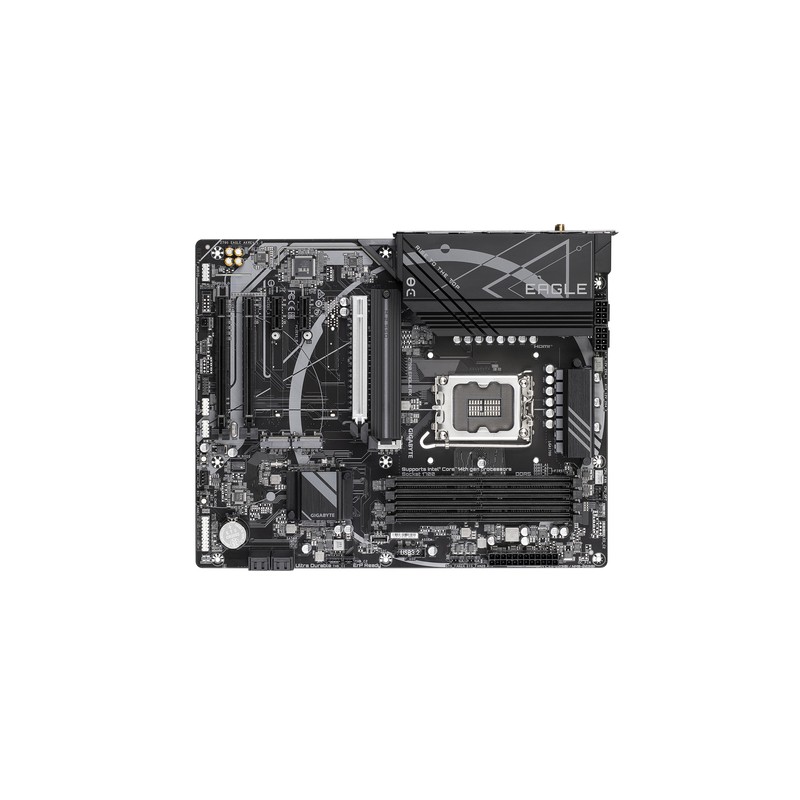

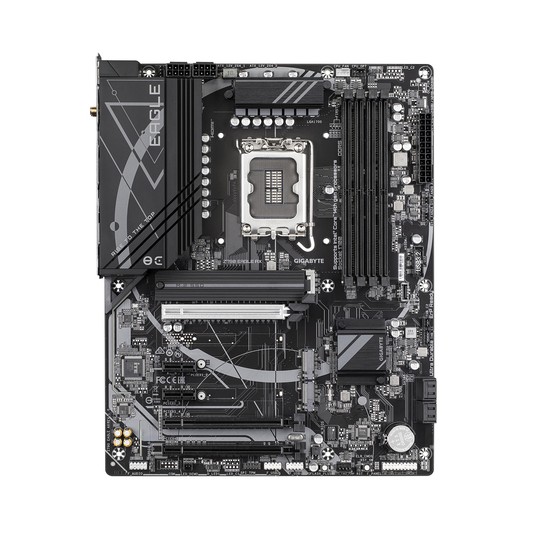

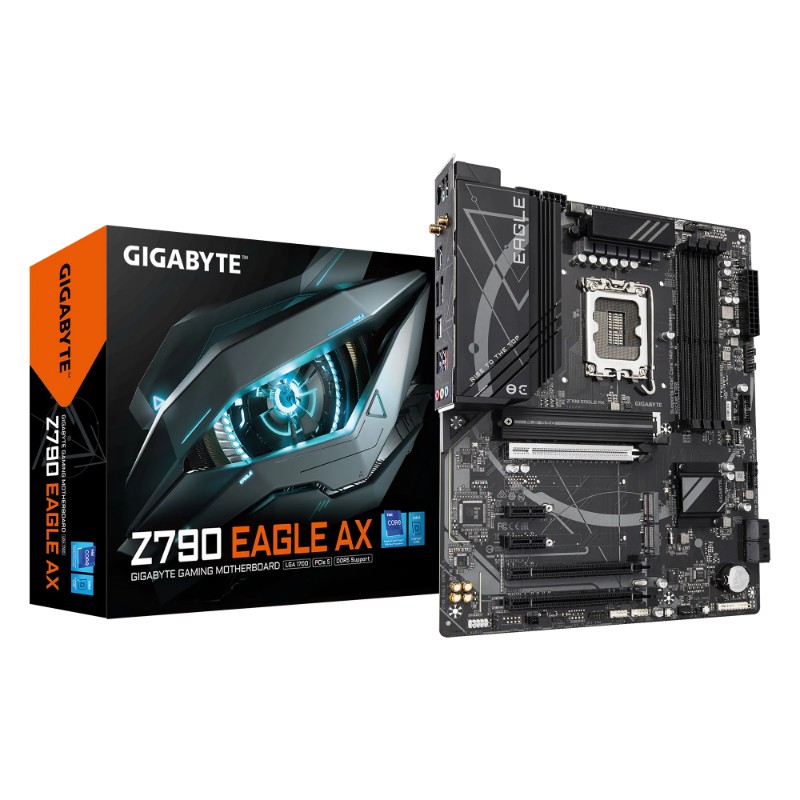

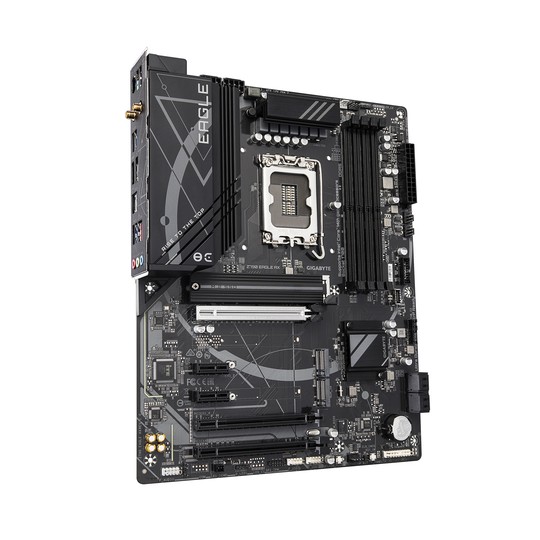

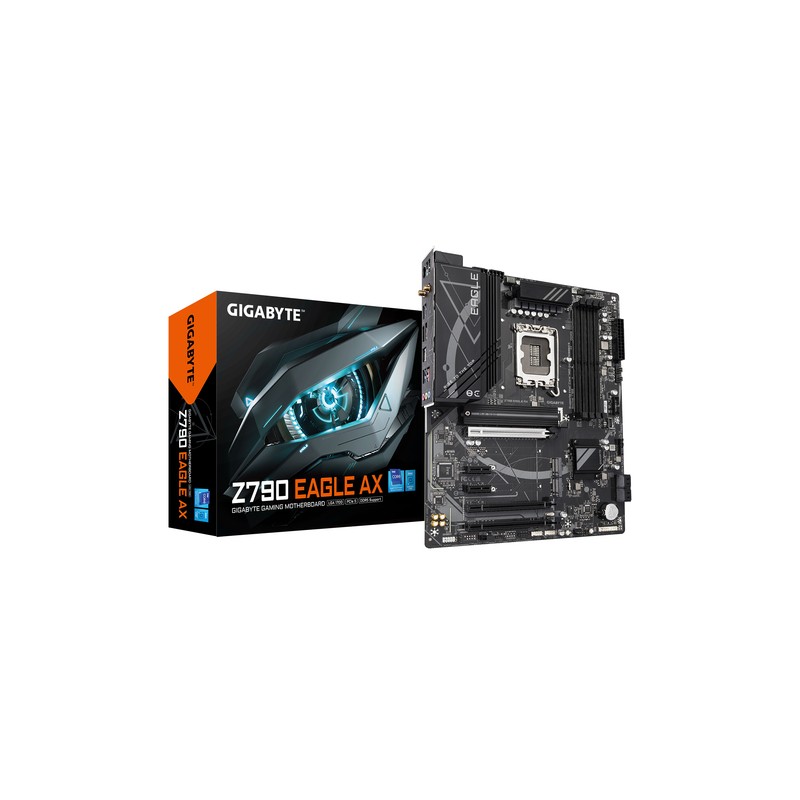

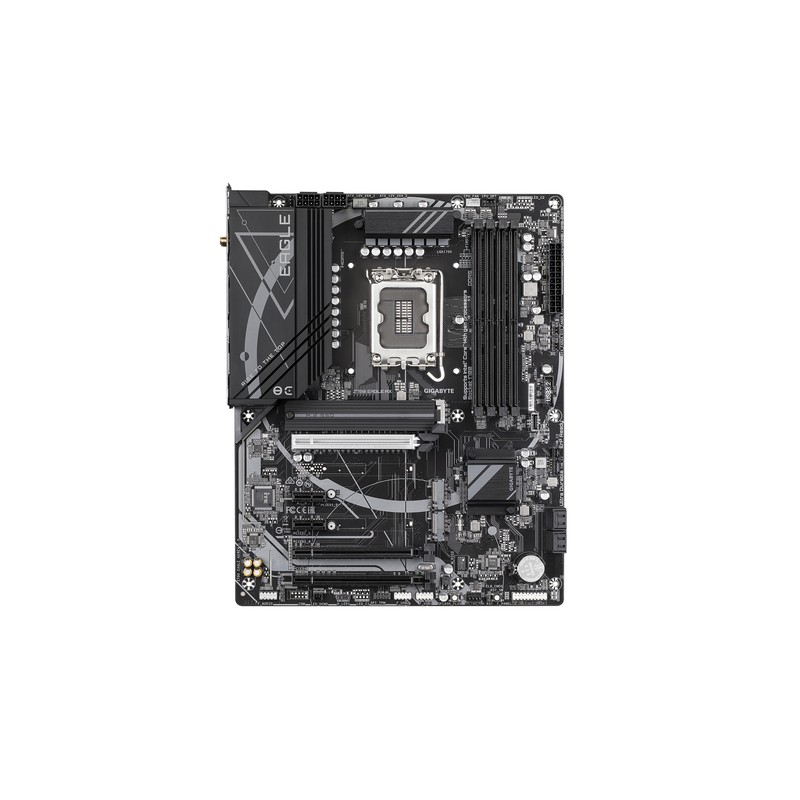

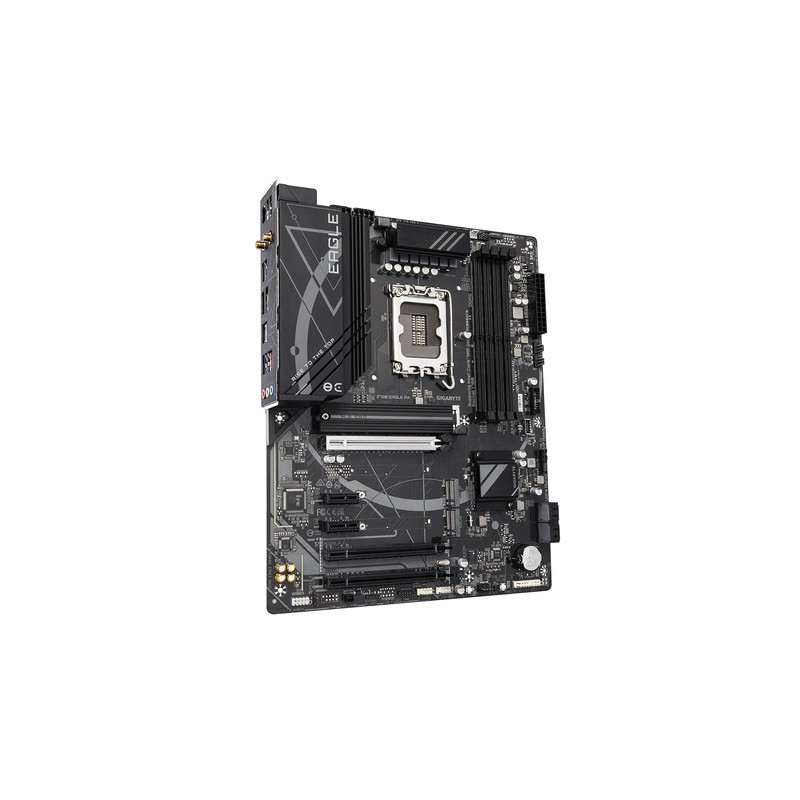

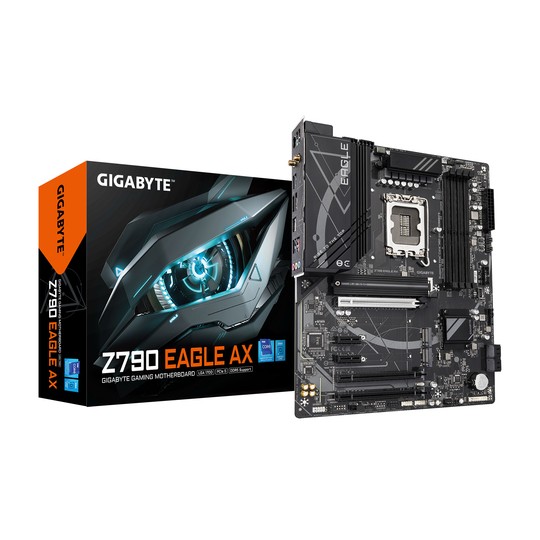

Placa Base Z790 Eagle Ax Gigabyte

Compatible con procesadores Intel® Core™ 14.º/13.º/12.º. Rendimiento incomparable: solución VRM digital de 12*+1+ fases gemelas. DDR5 de doble canal: 4 * DIMM con soporte para módulo de memoria XMP 3.0. Almacenamiento de próxima generación: 3 * conectores PCIe 4.0 x4 M.2. Diseño térmico avanzado y protección térmica M.2: para garantizar la estabilidad de energía de VRM y el rendimiento de SSD M.2. EZ-Latch: Ranura PCIe 5.0x16 con diseño de liberación rápida. Redes rápidas: LAN de 2,5 GbE y Wi-Fi 6E 802.11ax. Conectividad extendida: DP, HDMI, USB-C® trasero de 10 Gb/s. Smart Fan 6: cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP. Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica. * Diseño de potencia paralela de 6+6 fases

Especificaciones: Procesador LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. (Please refer ''CPU Support List'' for more information.) Chipset Intel® Z790 Express Chipset Memoria 14th and 13th Generation Intel® Core™ i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules. 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ''Memory Support List'' on GIGABYTE's website for more information.) Gráficos Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. * Support for HDMI 2.1 version and HDCP 2.3

** Support for native HDMI 2.1 TMDS compatible ports

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. * Support for DisplayPort 1.2 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings

Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Módulo de comunicaciones inalámbricas Intel® Wi-Fi 6E AX211 (PCB rev. 1.0). - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. - BLUETOOTH 5.3. - Support for 11ax 160MHz wireless standard. Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1). - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. - BLUETOOTH 5.3. - Support for 11ax 160MHz wireless standard. (Actual data rate may vary depending on environment and equipment.) Zócalos de Expansión CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16). * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot

Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4). - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4). - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Interfaz de almacenamiento CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support. - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header. - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel. - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header). - 2 x USB 2.0/1.1 ports on the back panel. Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers Conectores Internos E/S 1 x 24-pin ATX main power connector. 2 x 8-pin ATX 12V power connectors. 1 x CPU fan header. 1 x CPU fan/water cooling pump header. 3 x system fan headers. 1 x system fan/water cooling pump header. 2 x addressable LED strip headers. 3 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x S/PDIF Out header. 1 x USB Type-C® header, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 2 x Thunderbolt™ add-in card connectors. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only). 1 x reset button. 1 x Q-Flash Plus button. 1 x reset jumper. 1 x Clear CMOS jumper Panel E/S Trasero 1 x PS/2 keyboard/mouse port. 1 x USB Type-C® port, with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 ports. 2 x USB 2.0/1.1 ports. 2 x SMA antenna connectors (1T1R). 1 x HDMI port. 1 x DisplayPort. 1 x RJ-45 port. 3 x audio jacks Controlador E/S iTE® I/O Controller Chip. Monitorización Hardware. Voltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install

BIOS 1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Formato ATX Form Factor; 30.5cm x 24.4cm

• Chipset: Intel Z790
• Formato: ATX
• Hdmi: Si
• Imagen Salida: Graficos en CPU, HDMI, Displayport
• Memoria Maxima: 192GB
• Microprocesador Integrado: No
• Multi-Grafica: No
• N Bancos De Memoria: 4
• N Conexiones SATA: 4
• N USB 2.0: 2 Traseros, 4 Internos
• N USB 3.2 Gen1: 4 Traseros, 2 Internos, 1 Tipo C Interno
• N USB 3.2 Gen2: 1 Trasero, 1 Tipo C Trasero
• Pci: 1 PCIe 5.0 x16 , 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
• Raid: Si
• SATA 6Gb/S: 4
• Socket: Intel LGA 1700
• Tecnologia De Memoria: DDR5
• Tipo De Raid: 0,1,5,10
• USB 3.0: Si
• USB3.1 Interno: Si

Garantia: 36 meses
